Description
PRODUCT LITERATURE
AD/5.5 Dynasty 400 and 800 – English
PROCESSES
Air Carbon Arc Cutting and Gouging (CAC-A)
Stick (SMAW)
TIG (GTAW)
TIG AC (GTAW-AC)
TIG DC (GTAW-DC)
Pulsed TIG (GTAW-P)
GENERAL SPECIFICATIONS

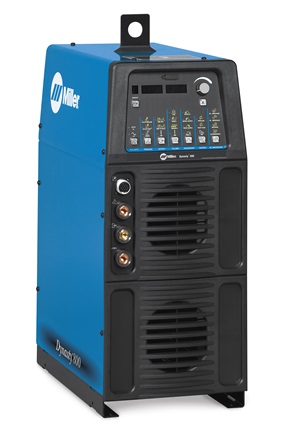

| Title | Dynasty® 800 208-575 V |
|---|---|
| Industries Interests | Aerospace Pipeline Shipbuilding |
| Material Thickness | Aluminum 0.020 in. (0.5 mm) – 1 in. (25.4 mm) Steel 0.020 in. (0.5 mm) – 1 in. (25.4 mm) |
| Weldable Metals | Aluminum Specialty Metals Stainless Steel Steel |
| Input Voltage | 208 V 220/230/240 V 380/400 V 460/480 V 575 V |
| Input Phase | 1- and 3-Phase |
| Input Hz | 50/60 Hz |
| Current Type | AC / DC |
| Max Open Circuit Voltage | 75 VDC |
| CACA Thickness | 3/8 in |
| Amperage Min | 5 A |
| Amperage Max | 800 A |
| Portability | Lift Eye (Standard) Running Gear / Cart (Standard) |
| Weld Output | CC |
| Applications | Aluminum Welding Fabrication Process Pipe |
| Net Width | 13.75 in |
| Net Height | 34.5 in |
| Net Length | 22 in |
| Net Weight | 198 lbs |
| Warranty | 3 Years Miller’s True Blue Warranty |
CERTIFICATIONS
CSA Certificate of Compliance 80086657
