Description
PRODUCT LITERATURE
DC/12.58 Millermatic 211 – English
DC/12.58S Millermatic 211 – Spanish
PROCESSES
MIG (GMAW)
Flux Cored (FCAW)
GENERAL SPECIFICATIONS

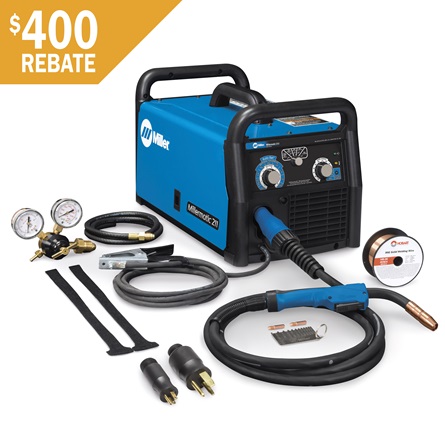

| Title | Millermatic® 211 MIG Welder |
|---|---|
| Material Thickness | Racing Farm and Ranch Welding Education and Training |
| Amperage | 30 A – 230 A |
| Material Thickness | Aluminum 18 ga. (1.2 mm) – 3/8 in. (9.5 mm) Mild Steel 24 ga. (0.5 mm) – 3/8 in. (9.5 mm) |
| Weldable Metals | Aluminum Stainless Steel Steel |
| Input Voltage | 110/115/120 V 220/230/240 V |
| Input Phase | 1-Phase |
| Input Hz | 50/60 Hz |
| Current Type | DC |
| Rated Output | 150 A at 21.5 VDC, 40% duty cycle (240V),115 A at 19.8 VDC, 20% duty cycle (120V) |
| Max Open Circuit Voltage | 54 VDC |
| Wire Feed Speed | 1.5 m/min – 15.2 m/min 60 IPM – 600 IPM |
| Wire Diameter | Stainless 0.024 in. – 0.035 in. Stainless 0.6 mm. – 0.9 mm. Solid Steel 0.6 mm. – 0.9 mm. Solid Steel 0.024 in. – 0.035 in. Flux Cored 0.03 in. – 0.045 in. Flux Cored 0.8 mm. – 1.2 mm. |
| Spool Size | 8 in (203 mm) |
| Portability | Handle(s) Running Gear / Cart (Optional) |
| Weld Output | CV |
| Applications | Welding Projects |
| Net Width | 11.25 in |
| Net Height | 12.5 in |
| Net Length | 20.5 in |
| Net Weight | 38 lbs |
| Warranty | 3 Years Miller’s True Blue Warranty |
CERTIFICATIONS
CSA Certificate of Compliance 80084730
